Application:
Embedded processor
Industrial controller
Smart Home System
Electronic learning tools
Mobile media devices
Conclusion:
MCIMX515DJM8C is an embedded processor based on the ARM Cortex-A8 architecture, providing high-performance and low-power processing capabilities.
Supports multiple peripheral interfaces, including multiple UART, I2C, SPI, and SDIO interfaces, as well as multiple GPIO and PWM pins.
Built in multiple communication protocols, including USB, Ethernet, CAN, and I2S, can be used in various application scenarios.
Integrated 2D accelerator and video codec, supporting decoding and encoding of multiple video formats and resolutions.
Supports multiple operating systems, including Linux, Android, and Windows CE.
Parameters:
Processor core: ARM Cortex-A8
Main frequency: 800MHz
Memory interface: DDR2, NAND Flash, SD/MMC card
Peripheral interfaces: UART, I2C, SPI, SDIO, GPIO, PWM, etc
Communication protocols: USB, Ethernet, CAN, I2S, etc
Video decoders: H.264, MPEG4, VC-1, etc
Video encoder: H.264, MPEG4, etc
Operating system support: Linux, Android, Windows CE, etc
Product Technical Specifications
| ECCN (US) | 5A992C | | Part Status | Active | | HTS | 8542.31.00.01 | | SVHC | Yes | | Automotive | No | | PPAP | No | | Family Name | i.MX51 | | Device Core | ARM Cortex A8 | | Maximum Clock Rate (MHz) | 800 | | Program Memory Type | ROMLess | | Data Bus Width (bit) | 32 | | RAM Size | 128KB | | Type | Applications Processor | | Processing Unit | Microprocessor | | PWM | 2 | | Watchdog | 2 | | Minimum Operating Temperature (°C) | -20 | | Maximum Operating Temperature (°C) | 85 | | Interface Type | Ethernet/I2C/SPI/UART/USB | | SPI | 3 | | I2C | 3 | | I2S | 1 | | UART | 4 | | Data Cache Size | 32KB | | USB | 4 | | Instruction Cache Size | 32KB | | USART | 0 | | CAN | 0 | | PCI | 0 | | Ethernet | 1 | | Programmability | No | | Core Architecture | ARM | | Ethernet Speed | 10Mbps/100Mbps | | Packaging | Tray | | Mounting | Surface Mount | | Package Height | 1.12 | | Package Width | 19 | | Package Length | 19 | | PCB changed | 529 | | Standard Package Name | BGA | | Supplier Package | BGA | | Pin Count | 529 | | Lead Shape | Ball |
|
|
|
|
|
|
|
|
|
|
|
|
Product Tags:
|
|

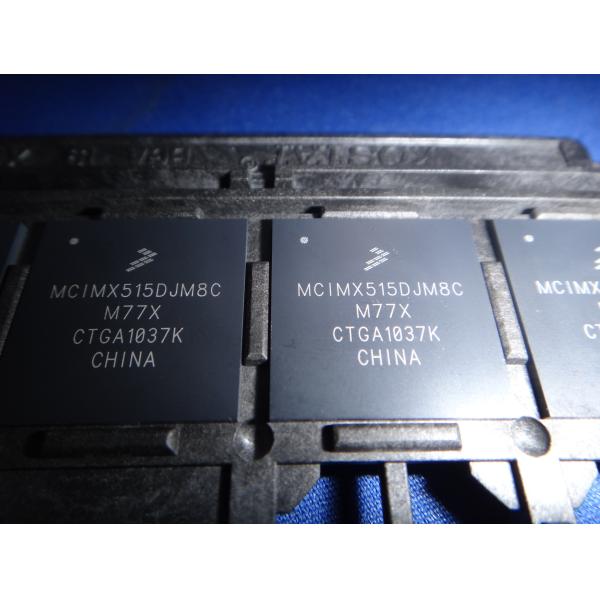

MCIMX515DJM8C Microcontroller Chip BGA529 Images
|
